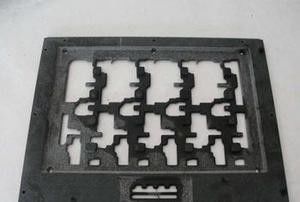

PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220

PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220
PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220 PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220 PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220

Large Image :  PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220

Product Details:

Place of Origin: Dongguan
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWSC-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per month
Detailed Product Description
Life Cycle: 20000 Times Colour: Blue/ Black/ Grey
Condition:: New Standard OperationTemperature: 260
Maximum Operation Temperature(C): 350 Sheet Size(mm): 2440×1220
High Light:

smt pallet

,

pcb carrier

PCB Fixture-Reflow Tin Furnace Jig SMT Pallets / PCB Carrier 2440×1220:

1. Reducing set-up time.
2. Eliminating unnecessary PCB board handling by operators.
3. Minimizing board warping.
4. Eliminate expensive hand masking and labour costs.
5. Standardizing process repetition.
6. Machine parameters.
7. Minimizing soldering defects


Surface Mount Process Carriers are engineered to completely fixture a circuit board during the overall assembly process. These carriers are made of high-temperature semi-conductive composite materials, used from start to finish in the assembly process..


Surface Mount Process Carriers are made of composite materials with advantageous features such as:


1. High-temperature compatibility to endure repeated cycles through the re-flow.
2. Material stability to ensure board alignment is consistent.
3. Chemical resistance for increased durability through harsh cleaning process.


Specification:


Model DurostoneCHP760 DurostoneCAS761 DurostoneCAG762
Grade Standard Anti-Static Anti-static(Optical)
Colour Blue Black Grey
Density(g/mm3) 1.85 1.85 1.85
Standard OperationTemperature 260 260 260
Maximum Operation Temperature(C) 350 350 350
Sheet Size(mm) 2440×1220 2440×1220 2440×1220
Tickness/weight(mm/kg) 3/17, 4/22 5/28, 6/33, 8/44 10/55, 12/66


Our sales network

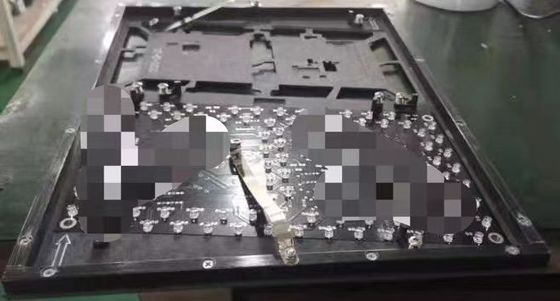

PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220 0


This estimation may be done in three ways


If a PCB is available (preferably populated) - our sales engineers can rapidly evaluate your board.
If PCB design data is available we will process, analyse and remotely assess it.
You can do it using the rules presented below - our customers quickly find that the above two methods are easiest.

Gerber, Excellon and other data required
Pin Land to SMT pad clearance evaluation

The two figures below each show part of a CSWSC in plan and section views. The right hand figure shows that more clearance
is required when the connector orientation is perpendicular to the wave.


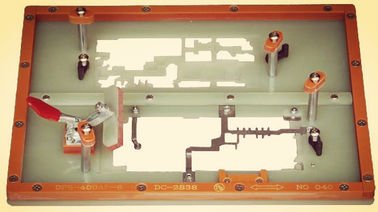

PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220 1
PTH Components Located Parallel to direction through wave
The clearance required between the pin land and SMT pad can be made quite
small, as the solder does not have to flow "under" the component pockets.





PCB Fixture-Reflow Tin Furnace Jig SMT Pallets PCB Carrier 2440×1220 2



PCB Design Implications - for Board Designers - or respin

We are often called upon by our customers to help with identifying design respin opportunities.
We will identify problem areas within a board and suggest appropriate movements of components. (Ideally before the PCB is fabricated)
However for board designers reading this, can you remember another four "rules" (to compete with the hundred other rules you have to have floating
around in your head).

Keep large (height) SMT components away from PTH areas.
Leave the leading and trailing areas around PTH components as clear as possible.
DON'T put any SMT components within 3mm (0.12") of any PTH components.
DON'T put all PTH components in line along one edge of a board - leave some space to allow us to support the masking in the centre of the board.
