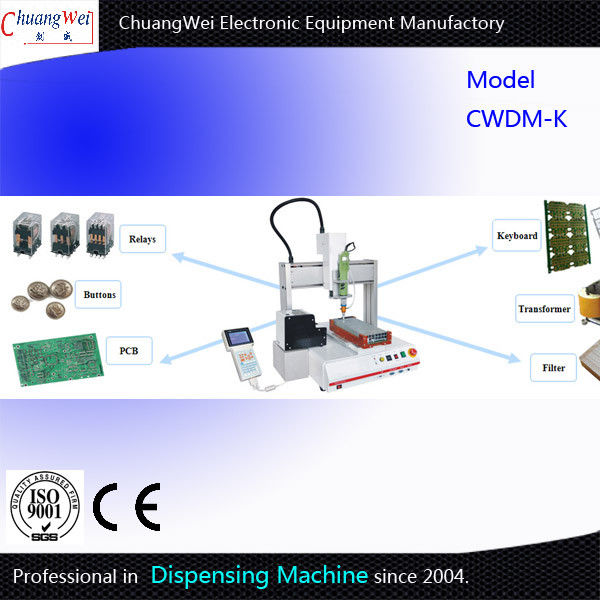

Bench Automated Dispensing Machines For PCB Assembly And Electronics

Bench Automated Dispensing Machines For PCB Assembly And Electronics
Bench Automated Dispensing Machines For PCB Assembly And Electronics Bench Automated Dispensing Machines For PCB Assembly And Electronics Bench Automated Dispensing Machines For PCB Assembly And Electronics Bench Automated Dispensing Machines For PCB Assembly And Electronics

Large Image :  Bench Automated Dispensing Machines For PCB Assembly And Electronics

Product Details:

Place of Origin: Dongguang China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CWDM-K

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payment confirm
Payment Terms: T/T, L/C
Supply Ability: 300 sets per months
Detailed Product Description
Motor System:: Micro Stepping Motor Operation Interface:: LCD Touch Panel/Handhold Control
Repeatability: +/- 0.02mm / Axis Interpolation Function:: 3 Axis
Power Supply: AC 90~260V 450W Working Area:: 400/400/100/(mm)
High Light:

Auto Dispensing Machine

,

pcb dispenser



Bench Automated Dispensing Machines For PCB Assembly And Electronics



Specifications

Dispensing machine
1. Fast, highly accurate
2. Teach Pendant
3. Factory



Dispensing machine



Application



Chevrons, fridge magnets, key chains, power supply, cell phone, energy saving light, LED, DVD, DC, Switch, Connector, relay and other industries needing fluid glue solder.

Applicable objects: Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

Glue type

Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease,

 glue, red glue, silver paste, thermal paste, solder paste, transparent paint,



Specification



1. Wide range of working envelopes

2. Excellent performance

3. Automatic suction effect, prevent leakage

4. Programmable interface via teach pendant

5. Samples processed for customer evaluation and approval prior to purchase



Technical Parameters



Model CWDM-k CWDM-k-330D CWDM-k-440D CWDM-k-550D
Work area (X/Y/Z)mm 200*200*50 300*300*100 400*400*100 500*500*150
Max. speed(mm/see) 0.1~500/350 0.1~800/500 0.1~800/500 0.1~800/500
Dimensions(W*D*H mm) 385*380*500 485*505*610 585*610*610 685*700*660
Resolution                 0.01mm/Axis
Repeatability                +/-0.01mm/Axis
Operation interface        LCD touch panel/Handhold control box
Drive mode        Micro stepping motor/belt
Power          AC220V 50-60HZ 0.8KW
Net weight 23kg 34kg 41kg 52kg
Operation environment               Humidity:20-90% RH, Temperature:0-40°C
Date storage type                    CF Card



 Bench Automated Dispensing Machines For PCB Assembly And Electronics 0

Instructions



1, Keyboard control in Chinese and English version, easy operation and maintenance.



2, Major functions: Drawing point, line, surface ,arc, circle,ellipse,irregular curve continuous complement and triaxial  linkage.



3, Be able to set size of gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.



4, According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.



5, This machine can set up quickly and easy to operate, can save more time and increase production.



6, The importing function supports AUTO CAD pattern, more accurate and reliable.



7, Handheld  LCD teach pendant,easy to program and control.



8, High degree of automation, easy operation which the staff can master severl equipments, Reduce the labor intensity of works ,and leads to increased efficiency and develop a competitive advantage of company





Auto Glue Dispenser/dispensing Machine supplier applicable objects:

Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and so on



Installation:

The automatic dispenser machine can satisfy various requirements for dispensing, only need to choose different fixtures and math with dispensing systems.

The following installation instruction is based on the 30CC needle cylinder clamp and simple type dispensing system as a model.
1. The standard accessories include the 30CC needle cylinder clamps, and they can be applied to 30CC or 55CC needle cylinder. If you want to use other needle cylinder, then you have to purchase other needle cylinder clamps appropriate.

2. Fix the needle cylinder clamps onto the Z axle. Put the hexagon socket flat head screws through the holes of the clamps and then lock on the Z ground side. The clamp has a couple of holes to select, according to the specific requirements .

3. Connect the signal port(three holes) of the dispenser machine on the backside to the signal port in the controller with dispenser signal line. The signal port in the dispenser machine is the same one that connecting with the foot-plate. Thus a problem may appear that the port can not be shared, if your dispenser machine is not purchased along with the matching machine. In such case, please contact the Extruder supplier for joint exchanging.

4. Connect the compressed air source to the dispenser controller, put the needle cylinder collet onto the needle cylinder and tighten it, and put the needle cylinder into the needle cylinder clamps and lock the screws which are used to fix the needle cylinder.( Please don’t over tighten, in case of deformation. And once it deforms, the piston then cannot fit with the inner side of the needle cylinder, and cause air leakage.)

5. Connect the handheld programmer to the machine.

6. Connect the dispenser machine and the controller to 220V power source.

7. Do make sure the pressure pipe of the needle cylinder collet and the power source will not influence the motion of each axles and working plate.

8. Congratulations for completing primary set of the dispenser machine, please learn teaching mode operation according to the following chapters.
