Product Details:
Payment & Shipping Terms:
|
| Material: | Synthetic Stone | Type: | Solder Pallet |
|---|---|---|---|
| Condition:: | New | Standard OperationTemperature: | 260 |
| Maximum Operation Temperature(C): | 350 | Sheet Size(mm): | 2440×1220(customize) |
| High Light: | smt pallet,pcb carrier |
||

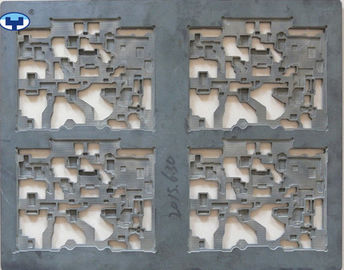

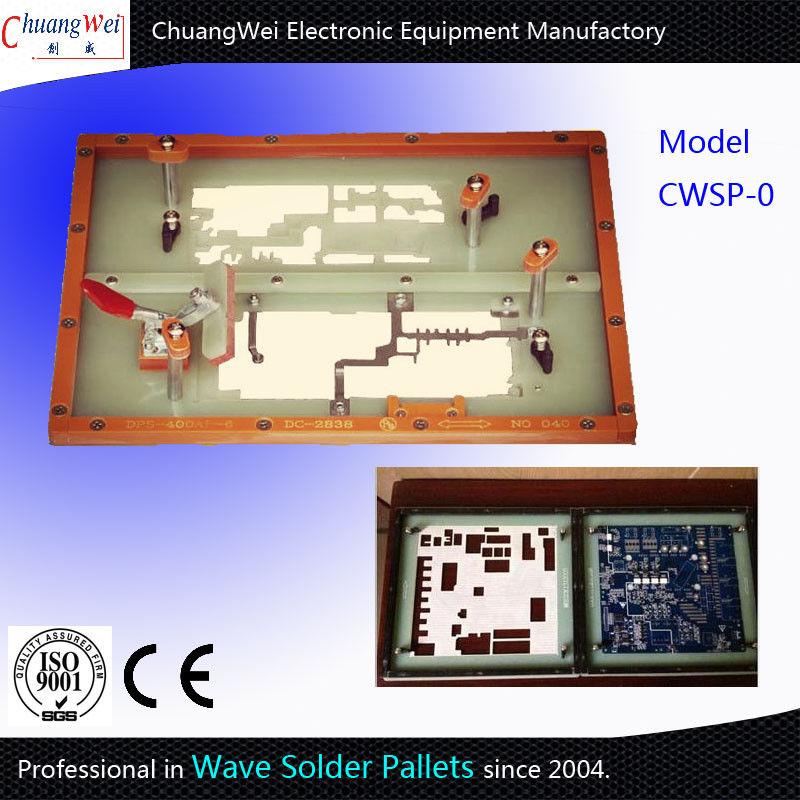

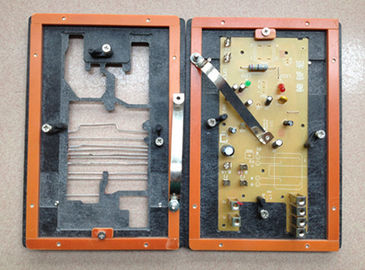

Jig PCB Carriers Fixture Adjustable Synthetic Stone Wave Solder Pallets
Functions:
1. Support thin baseboard or soft substrate circuit board
2. Carry an irregular shape solder pallet
3. Use multi-pak panel design to improve production efficiency
4. Prevent the deformation of the solder pallet during high temperature reflow soldering process
5. Smoothly surface, good endurance, applicable for Teflon spray painting
6. Avoid gold finger contamination by human contact
7. Protect bottom side SMT components during the wave soldering process
8. Prevent the deformation of the baseboard during the wave soldering process
9. Standardized the width of the production lines, eliminate the width adjustment of the production line
10. Prevent baseboard being contaminated by the overflow of tin
PTH Components Located Perpendicular to direction through wave.
A larger separation is required due to the solder having to flow "under"
component pockets.
Working your way around the underside of the PCB, identify which components
are parallel and perpendicular to the wave and assess the solderability of each
PTH connector by comparing the actual separation against the graph right.
Ideally you want to be above the line in all cases.
Gerber, Excellon and other data required
Pin Land to SMT pad clearance evaluation
The two figures below each show part of a CSWSC in plan and section views. The right hand figure shows that more clearance
is required when the connector orientation is perpendicular to the wave.
PTH Components Located Parallel to direction through wave
The clearance required between the pin land and SMT pad can be made quite
small, as the solder does not have to flow "under" the component pockets.
PCB Design Implications - for Board Designers - or respin
We are often called upon by our customers to help with identifying design respin opportunities.
We will identify problem areas within a board and suggest appropriate movements of components. (Ideally before the PCB is fabricated)
However for board designers reading this, can you remember another four "rules" (to compete with the hundred other rules you have to have floating
around in your head).
Keep large (height) SMT components away from PTH areas.
Leave the leading and trailing areas around PTH components as clear as possible.
DON'T put any SMT components within 3mm (0.12") of any PTH components.
DON'T put all PTH components in line along one edge of a board - leave some space to allow us to support the masking in the centre of the board.
