| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Work Area: | 300X*300Y*100Z Mm |
|---|---|---|---|
| Max. Load(Y/Z):: | 7kg/3kg | Move Speed(X&Y/Z): | 400/200mm/sec |
| Repeat Accuracy: | ±0.01mm/axis | MOQ: | 1 Set |
| High Light: | Auto Dispensing Machine,pcb dispenser |
||
Quality warranty 3 axis movement silicon dispensing machine , Dispensing Equipment for Adhesive, Epoxy, Silicone, Urethane,Silicon Desktop Glue Dispensing Machines Dispenser Robot

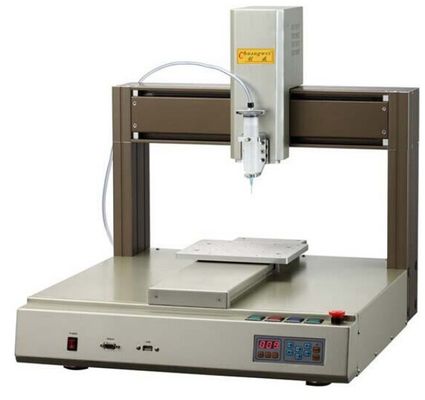

Silicon Dispensing Machine
1 English keyboard operation.
2 The software has the area display, easy set
| Technique Specifications | |||
| Model | CWDM-2 | CWDS331 | CWDS221 |
| Process range | 400 / 400 / 100 | 300 / 300 / 100 | 200 / 200 / 100 |
| Max Load(Y/Z) | 10 kg/ 5 kg | 6 kg / 2 kg | 4 kg / 2 kg |
| Speed of motion | 0.1~600 / 250mm/s | 0.1~600 / 250mm/s | 0.1~600 / 250mm/s |
| Positional Accuracy | 0.02 mm/Axle | 0.02mm/Axle | 0.02mm/Axle |
| Repeated Accuracy | +/- 0.02mm/ Axle | +/- 0.02 mm/ Axle | +/- 0.02 mm/Axle |
| Storage | Control Card 16MB Extended Storage 2 GB |
Control Card 16MB Extended Storage 2 GB |
Control Card 16MB Extended Storage 2 GB |
| External Communication | SD Card | SD Card | SD Card |
| Displayer | LCD | LCD | LCD |
| Driving method | Step motor + Timing belt | Step motor + Timing belt | Step motor + Timing belt |
| Programmable Graphic | Point, line, circle, arc, continuous line, etc. | Point, line, circle, arc, continuous line, etc. | Point, line, circle, arc, continuous line, etc. |
| Double Y axle | Upgrades Available | Upgrades Available | Upgrades Available |
| Edit mode | Demonstration | Demonstration | Demonstration |
| I/0Signal | 24in / 22out | 24in / 22out | 24in / 22out |
| Power source | 220V(+/-10%/50Hz) | 220V(+/-10%/50Hz) | 220V(+/-10%/50Hz) |
| Visual positioning | None | None | None |
The automatic dispenser machine can satisfy various requirements for dispensing , only need to choose different fixtures and math with dispensing systems .
The following installation instruction is based on the 30CC needle cylinder clamp and simple type dispensing system as a model .
1. The standard accessories include the 30CC needle cylinder clamps , and they can be applied to 30CC or 55CC needle cylinder . If you want to use other needle cylinder, then you have to purchase other needle cylinder clamps appropriate .
2 . Fix the needle cylinder clamps onto the Z axle. Put the hexagon socket flat head screws through the holes of the clamps and then lock on the Z ground side . The clamp has a couple of holes to select , according to the specific requirements .
3 . Connect the signal port ( three holes ) of the dispenser machine on the backside to the signal port in the controller with dispenser signal line . The signal port in the dispenser machine is the same one that connecting with the foot-plate . Thus a problem may appear that the port can not be shared , if your dispenser machine is not purchased along with the matching machine . In such case , please contact the Extruder supplier for joint exchanging .
4 . Connect the compressed air source to the dispenser controller , put the needle cylinder collet onto the needle cylinder and tighten it , and put the needle cylinder into the needle cylinder clamps and lock the screws which are used to fix the needle cylinder . ( Please don’t over tighten , in case of deformation . And once it deforms , the piston then cannot fit with the inner side of the needle cylinder , and cause air leakage . )
5 . Connect the handheld programmer to the machine .
6 . Connect the dispenser machine and the controller to 220V power source .
7 . Do make sure the pressure pipe of the needle cylinder collet and the power source will not influence the motion of each axles and working plate .
8 . Congratulations for completing primary set of the dispenser machine , please learn teaching mode operation according to the following chapters .
Features :
1 . English keyboard operation .
2 . Function : drawing point , line , surface , arc , circle , irregular curve continuous complement and triaxial linkage .
3 . The software has the area display , translation rotating operation functions .
4 . Can set glue size , glue speed , dispensing time , stopping glue time . Stable glue exudation without glue leaking and dripping .
5 . According to the production process , work platform can be installed with positioning PIN , glue guns , baseboard heating temperature controlling device .
6 . Applied to fluid dispensing , e.g. : UV glue , AB glue , EPOXY( black glue ) , white glue , EMI conductive glue , silicon , epoxy resin , instant glue , silver glue , red glue , paste , thermal grease , welding control paste , transparent paint , screw fixative ......
7 . Applicable objects : mobile phones , computer case , CD-ROM driver , printer , ink folder , PCB board , LCD , LED , DVD , digital camera , switches , connectors , relays , radiators , semiconductors , clocks , toys and medical appparutus .
Details technical parameters :
Advantages :
1 . English LCD panel teach pendant , easy operation and learning .
2 . Three axis movement robot has the function of drawing points , lines , surfaces , arc , circle , irrecular curves consecutive interpolation .
3 . Dispensing volume , dispensing speed , dispensing time , stopping dispensing time can be set .
4 . Autmatic curving protection .
5 . Special dispensing controller makes fluid flow stable without leaking and dripping .
Our Services
1 . Stable quality, competitive price , one year free parts warranty except for dispensing consumables , such as plastic pipes , needles . Over the warranty , lifelong maintenance is also available with some charges .
2 . One week delivery after down payment for standard type .
Why choose us
|
1 . Engineers available to service machinery oversea . Engineers are available to be sent to freign countries to do machinery training and offer technical support
|
|
2 . Mature technique & forerunner to process makes high quality machinery. As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router Our R&D team continuously upgrade the existing machines to meet the market development trend.
|
|
3 . One year warranty for the machines except accessories . Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients . We offer parts for replacement under warranty free of charge , clients only need to bear freight charge .
|
|
4 . Effective customer service . All of us together are stronger and wiser than any one of us individually . To succeed , we must assume responsibility , cooperate with fellow associates and withdepartments , effectively comminicate with one another , foster enthusiam and participate in decision-making . To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
|
|
Our mission : Ongoing PCB industry PCB separator technological innovation , to create greater value , allowing customers to success
|
|
Our Vision : Ongoing PCB industry PCB separator technological innovation , to create greater value , allowing customers to success
|
