| MOQ: | 1 Set | Warranty: | Free For One Year |
|---|---|---|---|
| Working Range: | 500*500*100mm(X*Y*Z) | Position Accuracy: | ±0.02mm |
| Control System: | PLC + TP | Screw Feeding: | Absorption Type |
| High Light: | screw tightener machine,auto dispensing machine |
||

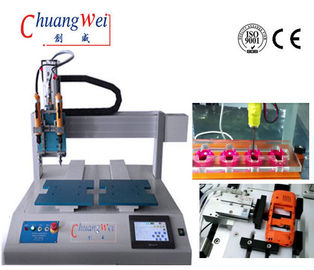

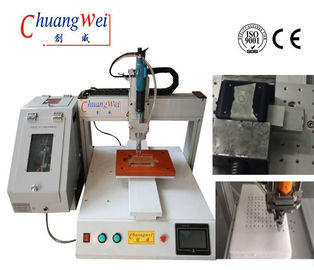

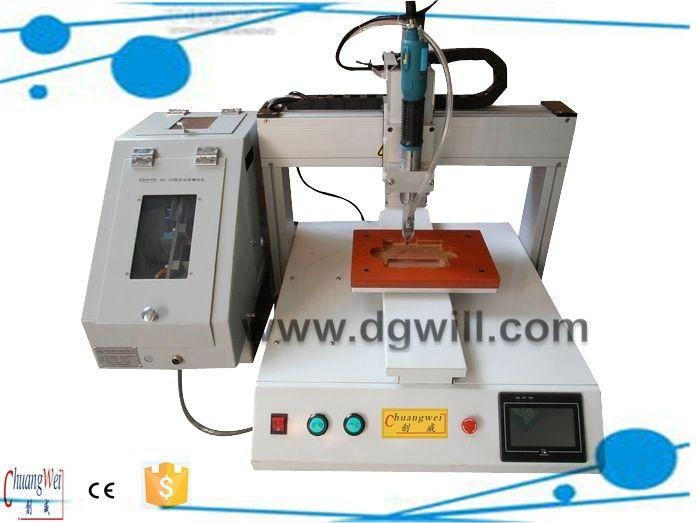

Electric Locking Screw Tightening Machine Screw Driver Machine Sepcification:
|
Working Range |
500 * 500 * 100mm ( X * Y * Z ) |
|
Drive mode |
3 axis driver |
|
Position accuracy |
± 0.02mm |
|
Control system |
PLC + TP |
|
Screw Feeding |
absorption type |
|
Operation method |
by Programming |
|
Working Speed |
Min <1.2S |
|
Memory size |
999 groups |
|
COM |
USB |
|
Voltage |
220VAC , 50HZ |
|
Air Pressure |
0.4 Mpa |
Features :
1 , Auto-intelligent detection for screw loose, screw missing,screw unstable . K576
2 , Automatic feeding and lock screws , Any screw hole point and location data can
be stored in the system at any time .
3 , Excellent commonality and easy replace Screw M2.0—M5.0
4 , Using X , Y , Z axis operation movement system control .
Application :
Notebook computers , glasses, mobile phones ,
LCD monitors,watches , integrated board, Sound box ,
Camera , Toys , small appliance Etc .
Description for screwing machine :
1 . With intelligent detection function , can automatically detect leakage lock , lock , slide tooth , double Y design , and able to work alternately
2 . Strong flexibility , the standard universal fixture applicable model of screw lock .
3 . Strong commonality , replace the screw conveyor modules can be adapted to M2.0 - M6 screw lock .
4 . Equipment for small , save space , reduce the plant resources . Easy to put into the production line , and before the standard after the function .
5 . Double Y design , alternating operation , maximize production efficiency , production of profit maximization , the lowest cost of production .
6 . Application : Especially suitable for all kinds of screw lock pay of consumer electronics , such as calculators , navigation, audio , camera , laptop , tablet PC , learning machine , small home appliance , etc .
About us :
|
Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004 , is located in the world manufacturing city Dongguan ,Guangdong ,China . The company is committed to development,manufacture, sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry. |
|
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. |
|
Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China |
|
Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
|
|
Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry. |
Detail image :
Service processing :
CE certificate :
