Two Japan Linear Blades Pre - Scored PCB Depanelizer For 400mm Rigid Thickness PCB

China Two Japan Linear Blades Pre - Scored PCB Depanelizer For 400mm Rigid Thickness PCB supplier
Two Japan Linear Blades Pre - Scored PCB Depanelizer For 400mm Rigid Thickness PCB supplier Two Japan Linear Blades Pre - Scored PCB Depanelizer For 400mm Rigid Thickness PCB supplier Two Japan Linear Blades Pre - Scored PCB Depanelizer For 400mm Rigid Thickness PCB supplier

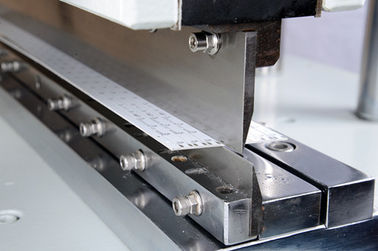

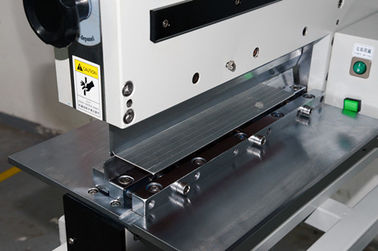

Large Image :  Two Japan Linear Blades Pre - Scored PCB Depanelizer For 400mm Rigid Thickness PCB

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWVC-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 800 sets/year
Contact Now
Detailed Product Description
Blade Material: Japan High Speed Steel Separating Speed: Due To Operator Skill Level
Separating Thickness: 0.3-3.5mm Warranty: Free For One Year
Certification: CE ISO Type: Pneumatic


Two Japan Linear Blades Pre - Scored PCB Depanelizer For 400mm Rigid Thickness PCB

Details

1. Easy maintenance and operation
2. Thin PCB even to 0.3mm can be sheared safely
3. Shearing process without vibrations due to pneumatic drive unit
Technical parameters



ModelCWVC-400
Max. PCB shearing length      400mm(Can custom made)
PCB  shearing thickness0.3-3.5mm
Voltage and Power110V/220V       10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB shearing machine size    620*230*400mm
PCB shearing machine weight165kg


Features:
1. Pneumatically driven and electromagnetic valve control.
2. Shearing process without vibrations due to pneumatic drive unit .
3. Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.
4. Shearing operation is that operator stamps the foot pedal to shear PCB.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between  V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.



Our service

1.  One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

2.  Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

3. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


4.  Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



Brief Introduction



Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry.

Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers.

Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China

Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.


Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.
