Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Months Free Of Charge | Blade: | Two Linear Blades |
|---|---|---|---|
| Blade Material: | High Speed Steel From Japan | Blades Life: | 7-8 Months |
| Separating Thickness: | 0.3-3.5mm | Max. PCB Depaneling Length: | Unlimted |
| High Light: | pcb depaneling machine,metal cutter machine |
||

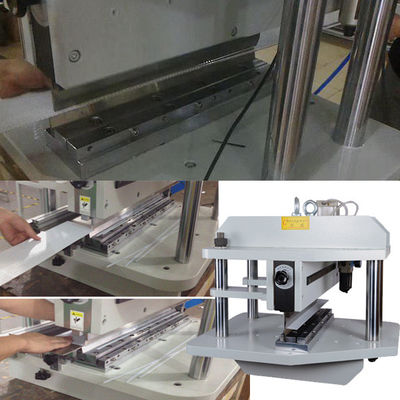

Two Linear Blades V - Cut PCB Separator To Cutting Rigid And Thick Metal Circuit Board
V-CUT PCB separator machine:
1. Nice for separating v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2. Separate rigid and thick board fluently.
3. Use pneumatic-driven and electromagnetic valve to operate.
V-CUT PCB separator machine specifications:
| Model | CWVC-450 |
| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high speed steel |
| Max.PCB separating length | unlimted |
| PCB separating thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB separating speed | due to operator skilled level |
| PCB separator machine size | 900*760*750 |
| PCB separator machine weight | 475kg |
V-CUT PCB separator machine features:
1. New style rigid machine structure design,separate any length rigid and thick metal board more safely and easily.
2. Separate long boards directly,without turning PCB direction.
3. Separating process without vibrations due to pneumatic drive unit.
4. Separating PCB without bending and tension stress.

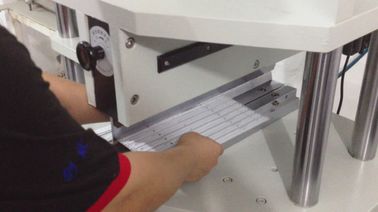

5. PCB control operation is that operator stamps the foot pedal to separate PCB.
6. Highest components near the v groove of PCB can be up to 50mm.
7. Gap for insertion of PCB can be easy to adjust.
Brief introduction
|
Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry. |
|
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. |
|
Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China |
|
Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
|
|
Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry. |
