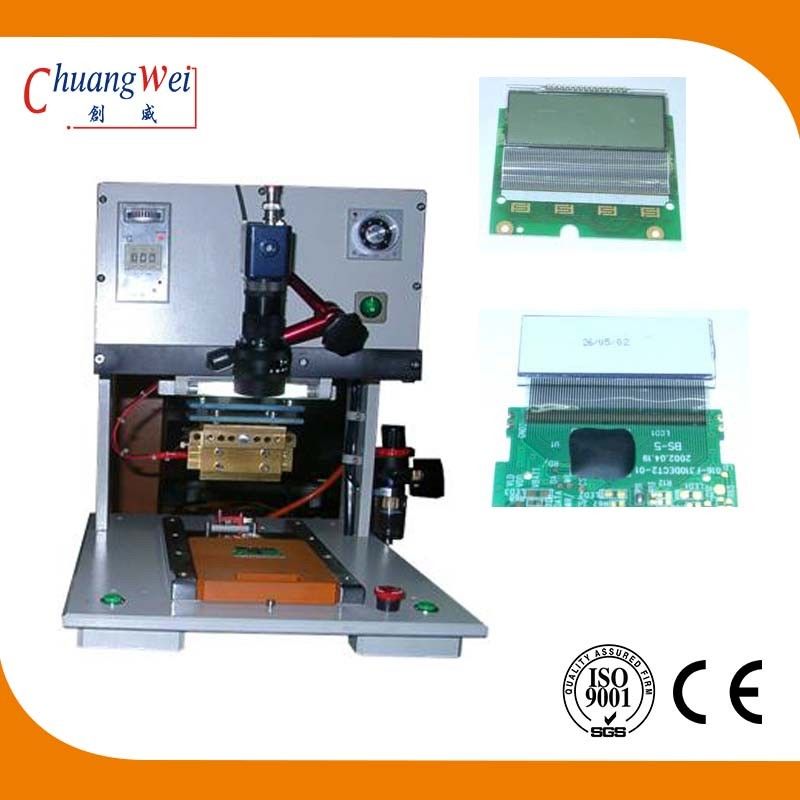

0.5 - 0.7MPA Reflow Soldering Machine , Surface Mount Soldering Tools LCD display

0.5 - 0.7MPA Reflow Soldering Machine , Surface Mount Soldering Tools LCD display
0.5 - 0.7MPA Reflow Soldering Machine , Surface Mount Soldering Tools LCD display 0.5 - 0.7MPA Reflow Soldering Machine , Surface Mount Soldering Tools LCD display

Large Image :  0.5 - 0.7MPA Reflow Soldering Machine , Surface Mount Soldering Tools LCD display

Product Details:

Place of Origin: Dongguang china
Brand Name: Chuangwei
Certification: CE ISO9001
Model Number: CWHP-1S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after payments confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Detailed Product Description
Work Air Pressure:: 0.5-0.7MPA Working Area:: 110mm X 150mm
Temperature Setup:: 0-400℃ Tolerance Of Temp: +2°
Time Of Pressing:: 0-99s Tolerance Of Pressing:: 0.05MPA
High Light:

bonding machine

,

pcb soldering machine





LCD display programmable Hot bar soldering machine connect LCD and PCB CWHP-1S



Feature:



1. Closed Loop PID temperature control with visible LED display


2. LCD display programmable pressure switch for precise force control


3. Each heating cycle is triggered by a real time pressure sensor


4. Parts registration is adjusted by micrometer and secured by vacuum lock


5. Optional CCD system for fine pitch component



6. Floating thermode ensures consistent pressure and heat transfer between the thermode head and the parts to be joined


7. Silicon rubber can be fitted in bonding Heat Seal Connectors between LCD and PCB


8. Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation.



Specification:



Data lines Link welding machine


1. Accurate Tin press,not drag


2. Accurate heat


3. Fine-pitch positioning


4. Precision



Model

CWHP-1S

Tolerance of  Pressing

0.05MPA

Time of pressing

0-99s

Tolerance of Temp

+2°C

Temperature setup

0-400°C

Working area (mm)

110*150

Air pressing (MPa)

0.5~0.7

Size (MM)

500*750*910

Weight (Kg)

90

Guarantee

1 Year

Delivery

1 Day

Min. Order

1 Set

Ability

1000 Sets





Why choose us:



1.Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.

 2.Engineers available to service machinery oversea.



Engineers are available to be sent to freign countries to do machinery training and offer technical support.

3.One year warranty for the machines except accessories. b router machine

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

4.Effective customer service. pcb router machine

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine






Cooperative clients recommendation:



0.5 - 0.7MPA Reflow Soldering Machine , Surface Mount Soldering Tools LCD display 0





CE certification:



0.5 - 0.7MPA Reflow Soldering Machine , Surface Mount Soldering Tools LCD display 1
