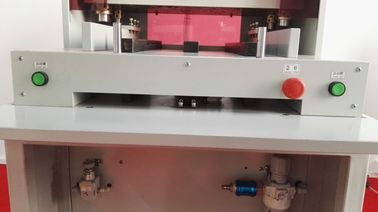

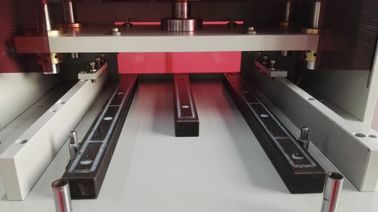

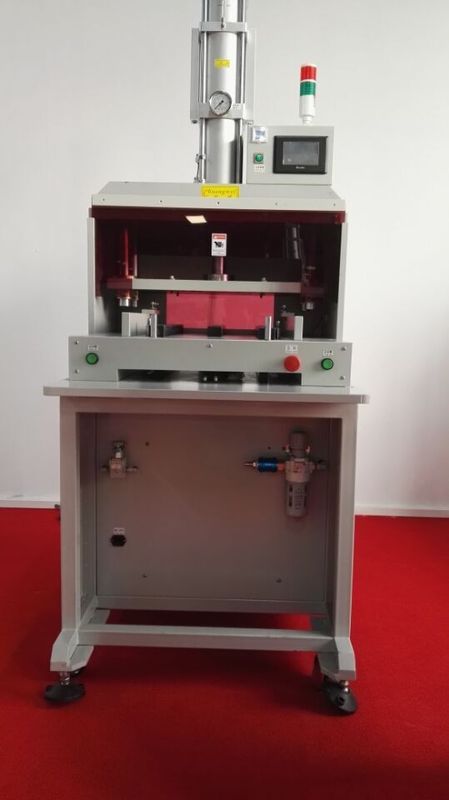

Pneumatic Program FPC/PCB Punching Machine with Large Lcd and Robust Frame

Pneumatic Program FPC/PCB Punching Machine with Large Lcd and Robust Frame
Pneumatic Program FPC/PCB Punching Machine with Large Lcd and Robust Frame

Large Image :  Pneumatic Program FPC/PCB Punching Machine with Large Lcd and Robust Frame

Product Details:

Place of Origin: Donggguan China
Brand Name: Chuangwei
Certification: CE ISO9001
Model Number: CWPE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: each set be packed in plywood case
Delivery Time: 1-3 days after deposit confirm
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets per month
Detailed Product Description
Working Area: 330*220mm Contribute: 3-30T
Depression: 0.45-0.70pa Guarantee: Free 12 Months
Weight: 530kg Size: 730*810*1700
High Light:

pcb punching machine

,

pcb assembly machine



Pneumatic Program FPC / PCB Punching Machine with Large Lcd and Robust Frame CWPE



Feature:





1. Machine has strong structure and moves easily with 4 Casters.
2. can replace a variety of mold, and mold changing easily.
3. the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4. mould and die can be made according to customer's request.

5. make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
6. punching cutting semi-finished PCB with high efficiency.



Detail:



1. Apply to cut Rigid pcb,Flexible pcb(FPC),Rigid-Flexible pcb.
2. Use punching mould to cut with high efficiency.
3. Can replace multiple mold for production and mold changing easily.
4. The operation is simple and safe.



Technical parameters:



model

CWPE

Punch Contribute (T)

3 (can custom made up to 30T)

Working area (mm)

330*220 (can custom made)

Voltage(V)

110/220

Working air pressure(Mpa)

0.5-0.7

fpc/pcb punching machines size (mm)

730*810*1700

fpc/pcb punching machines weight (kg)

530



Pneumatic Program FPC/PCB Punching Machine with Large Lcd and Robust Frame 0





Competitive advantage:



1.  pcb&fpc punching machine CWPE with LCD display for operator set working program.

2.  pcb&fpc punching machine CWPE can set punching times and total times through LCD.

3.  pcb&fpc punching machine  CWPE warning with red line and automatic stop while punching times up to operator set before working.

4.  pcb&fpc punching machine CWPE automatically warn operator to clean the platform.



Cooperative clients recommendation:



Pneumatic Program FPC/PCB Punching Machine with Large Lcd and Robust Frame 1







Always best service:



1. Engineers available to service machinery oversea. pcb router machine

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. Mature technique & forerunner to process makes high quality machinery. pcb router machine


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3. Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.

4. One year warranty for the machines except accessories. pcb router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
