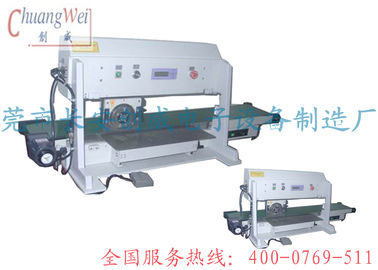

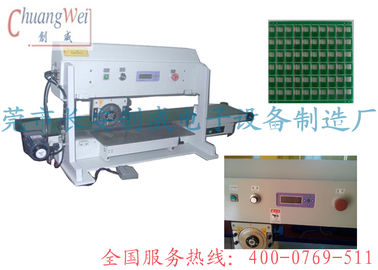

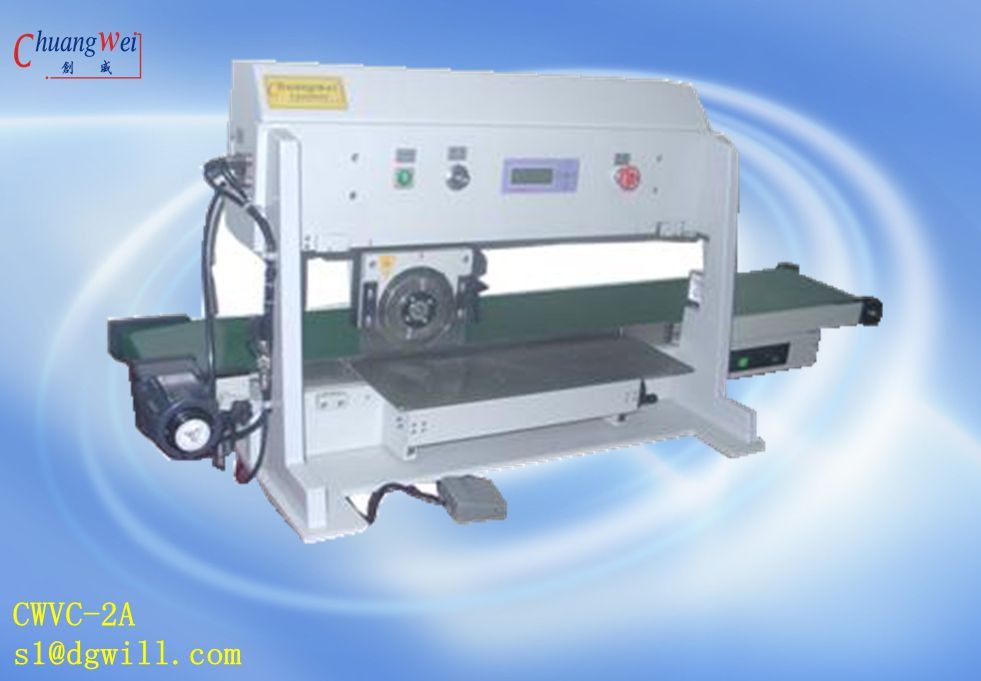

FR4 PCB Separation with Convey Belt and CE Approved

FR4 PCB Separation with Convey Belt and CE Approved
FR4 PCB Separation with Convey Belt and CE Approved FR4 PCB Separation with Convey Belt and CE Approved FR4 PCB Separation with Convey Belt and CE Approved

Large Image :  FR4 PCB Separation with Convey Belt and CE Approved

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb separator
Certification: CE Certificate
Model Number: CWV-2A pcb separation

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 80 sets / month
Detailed Product Description
Shpping Way: FOB / EXW Warranty: Free For One Year
Material: High Speed Steel Use: Cutting Fr4 ,PCBA, Led Alum Board,etc
System: Automatic Type Cutting Length: 460mm
Boards Type: FR4 Aluminum Color: White
High Light:

printed circuit board machine

,

depaneling machine

Fiber Glass PCB Separation With Convey Belt And CE Approved PCB Separating Specification:



pcb separating machine size

880mm X 460mm X 560mm

pcb cutting length

460 mm

pcb separating machine weight

185 kg

pcb cutting thickness

0.6-3.5 mm

pcb cutting speed

100 / 200 / 300 / 500 mm /s



Features:



1. The circular blade moves horizontally and the straight knife moves up and down
to cut the board with the pcb staying, thus the electronic elements won’t be damaged .
2 . With microcomputer technology, the program can control the cutting schedule and cutting times with storage of up to 100 groups of data . This machine is suitable for width from 58mm to 220mm of board .
3. The gap between the upper and lower blade is adjustable , from 0mm to 15mm .
4. The straight blade moves up and down , which is available to cut double-sided board .
5. The manual switch controls the cutting speed of 1 cut/s .
6. No need to feeding boards manually with high-tech device , there are reserved port for external robotic hand .
7. The productivity is visible due to the auto counter performance .
8. With safety device of Omron infrared light sensor , the machine stops operation when it senses the hand or foreign matter in the moving zone of the blade .
9. With step motor , the machine locks by itself and positioning accurately when in an energized state .
10. When the solder panel with many pieces of boards is separated , it’s easy to hurt the elements or the circuit . While this machine is available to avoid the damages and improve working efficiency and quality .
11. After cutting the pcb , the boards can be transferred directly to the inspection line through the conveyor belt .
