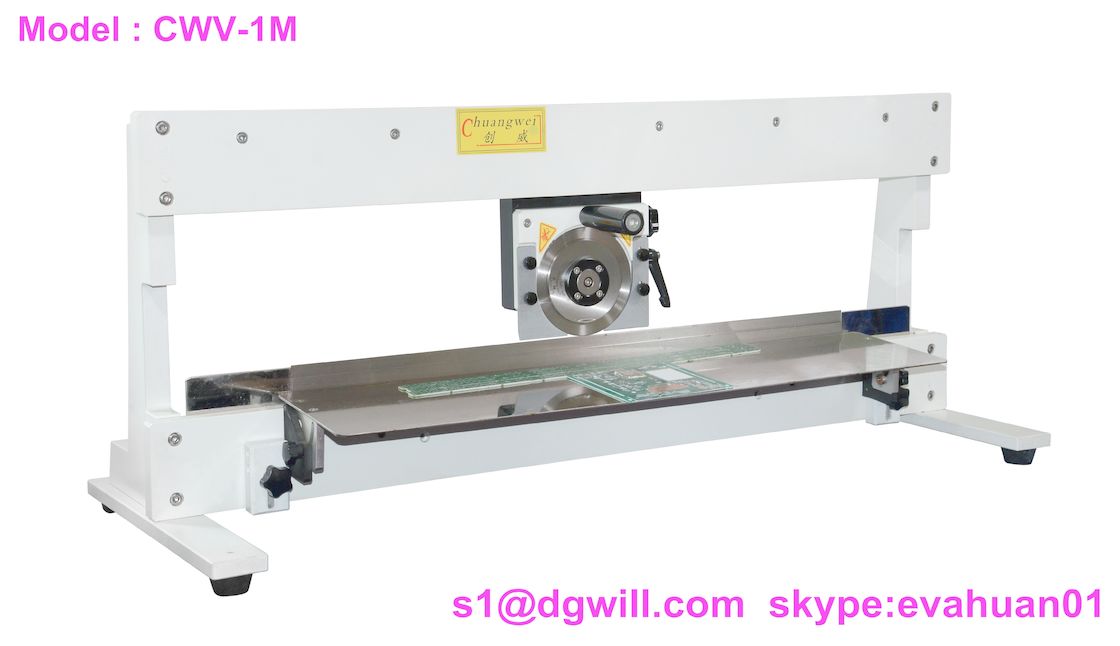

CE Appreoved Pcb Depanelizer Operated high speed steel With Hands

CE Appreoved Pcb Depanelizer Operated high speed steel With Hands
CE Appreoved Pcb Depanelizer Operated high speed steel With Hands

Large Image :  CE Appreoved Pcb Depanelizer Operated high speed steel With Hands

Product Details:

Place of Origin: China
Brand Name: Chuangwei pcb depanelizer
Certification: CE and certificate of registion
Model Number: CWV-1M pcb depanelizer

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: 3 days after receive the payment
Payment Terms: T/T ,Paypal ,West Union ,L/C
Supply Ability: 300 sets/ month
Detailed Product Description
MOQ: 1 Set Cutting Length: 460 Mm /720 Mm
Material: High Speed Steel Blades: One Circle Blade And One Linear Blade
Shipping Way: According To Customers Requirement Package: Plywooden Case
Payment Term: T/T In Advance
High Light:

PCB depanelization machine

,

V-CUT scoring machine

CE Appreoved Pcb Depanelizer Operated high speed steel With Hands





CE Appreoved Pcb Depanelizer Operated By Hands



CWV-1M  separates both small and large pre-scored PCBs . The table and the rest can be continuously adjusted to the most suitable working position . The slit between the linear blade and the rest can be adjusted to ensure that the side strips fall through and are sorted out. The PCB is placed with its pre-scored groove onto the linear blade and the circular blade is then drawn by hand across the PCB . The distance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove . The pre-scored grooves can be interrupted by any number of cutouts . If components project above the groove ,  the linear blade needs to be omited . In such a case , please contact us .





CWV-1M PCB Depaneler Features :



A . With no banding stress design idea to operate V-Cut PCB separated process.
B . Lay down PC board . Rotary movement blade, Separated PCB without stress.
C. Cutting process is adjustable in stage.
D . PC board separated very fast , Operated with D. C . motor without carbon brush .
E . The cutting force is stably .
F . The speed of blade is adjustable Line with the V-cut flute and apart PC board .
G . Round blade and long knife bottom side could be adjust slightly .
H . The blade and knife could be re-sharpened, Special design for odd type component across the cutting       flute is available suitable for separate long and short size PC board .
I  .  Precision and durable mechanism .





Specifications :



Model:

CWV-1M720

Size:

1027x400x436mm

The Separate Size:

720mm

Minimize Speed:

Manual

Minimize Thickness:

0.6-3.5mm

Machine Weight:

45kg





Model:

CWV-1M460

Size:

787x400x436 mm

The Separate Size:

460mm

Minimize Speed:

Manual

Minimize Thickness:

0.6-3.5mm

Machine Weight:

30Kg





Please note :



round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste . However , for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board (e.g. CWVC-3  CWVC-2L  CWVC-450  CWVC-480) .
