Product Details:
Payment & Shipping Terms:
|
| MOQ: | 1 Set | Material: | High Speed Steel |
|---|---|---|---|
| Use: | Cutting PCBA , FR4 , LED Linght Bar , Alum Board | Supply Ability: | 1000 Sets/ Year |
| Stock: | In Stock Now | Cutting Length: | 450mm |
| High Light: | pcb assembly machine,metal cutter machine |
||

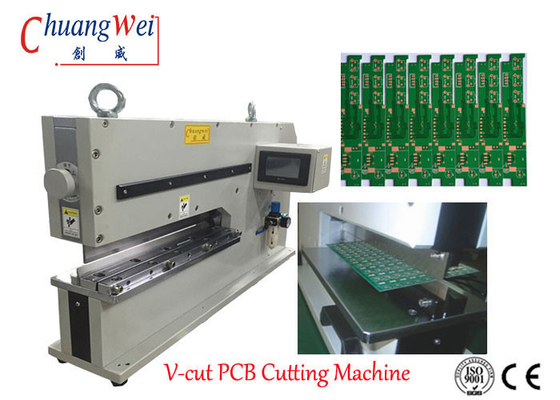

Lowest Cut Stress PCB Depaneling Machine Cutting 480mm Length Alum Board
V- cutting machine specifications:
|
Model: |
CWVC-450 |
|
The max .cutting length: |
450 |
|
Pcb Depaneling Machine Size: |
780mmx500mmx620mm |
|
The max cutting thickness: |
0.3-3.5mm |
|
Working Area: |
330*220mm |
|
Pcb Depaneling Machine Weight: |
185Kg |
Our Competitive Advantage:
Pneumatically driven and electric control
The machine is pneumatically driven and electric control . The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress . Even
sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due to the special design of the knives also boards with high components placed close to the edges can be separated safely . Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove . This enables boards of less than 1 mm thickness to be separated safely and without creating stress .
Applications:
Cutting the aluminum base boards , FR4 , fiber glasses , pcba , etc.
please leave a message to the email:s1@dgwill.com
Features:
1, No vibration during the process to prevent damage to precise PCB
2, Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine , low friction design is applied .
3, Lower knife height adjustable , the front and real portion can be adjusted separately . No thin plates are required after re-sharpening the knife.
4 , Operation and maintenance can be done also by unskilled personnel
Advantages:
1. The cutting rate is one segmentation for one second , controlled by pneumatic pedal switch
2. The starting of the cutting set is for passive , so that the cutting tangent and position is under secure control . With little stress when cutting , there will no solder crack .
3. With cutting of nonroller (circular knife, straight knife ) type , there is no dust , no motor drive , and no carbon powder pollution .
4. With no-rubbing type cutting , there is no metal residue .
5. The blade can be used 600000 / times without power supply , avoiding the loss and change of electrical products .
6. The machine uses 5-7kg air compressor without specific cutting place , and it is maintained by wiping its appearance with the anti-rust oil .
