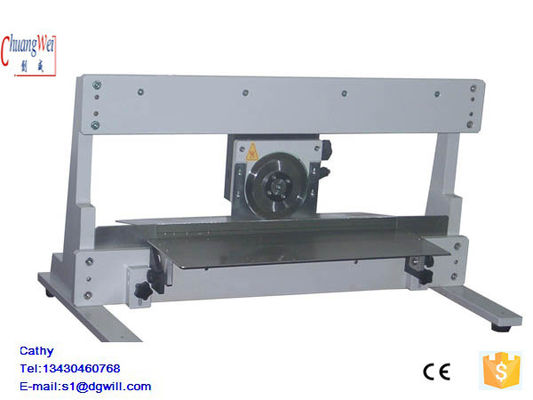

CE Pcb Separator Auto Cutting machine Operated , v groove machine

CE Pcb Separator Auto Cutting machine Operated , v groove machine
CE Pcb Separator Auto Cutting machine Operated , v groove machine

Large Image :  CE Pcb Separator Auto Cutting machine Operated , v groove machine

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE and certificate of registion
Model Number: CWV-1M pcb separator machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden case
Delivery Time: 3 days after receive the payment
Payment Terms: T/T L/C paypal west union credit card
Supply Ability: 100 sets/ month
Detailed Product Description
Name: Pcb Separator Machine Overseas Service: Support Overseas Technical Service
Material: High Speed Steel System: Manual Type
Separation Length: 460mm / 720mm Warranty: Free For One Year
High Light:

PCB Cutting Shear

,

pcb depaneling machine



CE Pcb Separator Auto Cutting machine Operated , v groove machine





Quick Detail:



1. Round knife, manually cutting against lower linear knife, for reduced stress

2. Separate pre-scored PCB assembly without stress on either PCB or component

3. One touch programming of cut length with digital display

4. Separating speed is adjusted by a rotary knob

5. Handle Intermittent scoring or cut-outs

6. Board with projected component can be cut precisely

7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable

8. Optional PCB conveyor belt to remove finished board

9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out





Specifications:



pcb separator machine model :

CWV-1M720

Machine Size :

1027x400x436mm

separation length :

720mm

separation speed :

Manual

separation thickness :

0.6-3.5mm

pcb separation machine Weight :

45kg



pcb separator machine model :

CWV-1M460

pcb separator machine Size :

787x400x436 mm

The cutting length :

460mm

Minimize Speed :

Manual

Minimize Thickness :

0.6-3.5mm

Machine Weight :

30Kg





Competitive Advantage :



1. CWV-1M Pcb depanelizer original manufacturers, price concessions

2. Day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-programme



CE Pcb Separator Auto Cutting machine Operated , v groove machine 0
