PCB Separation Machine with 2 Linear Blades High Speed Steel-PCB Depaneling

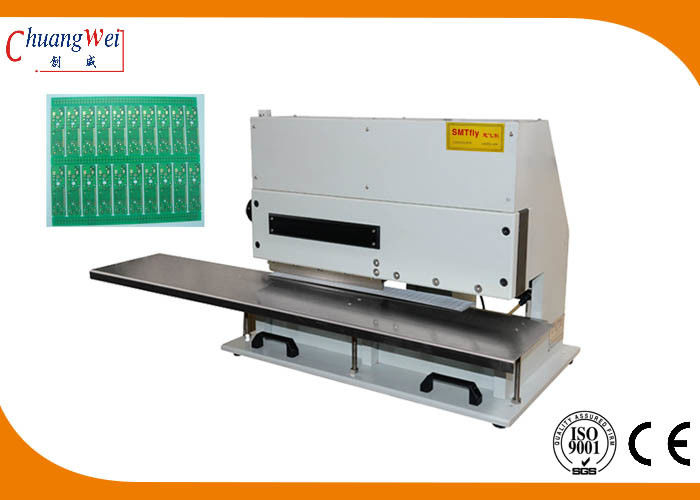

Large Image : PCB Separation Machine with 2 Linear Blades High Speed Steel-PCB Depaneling

Product Details:

Place of Origin:	China
Brand Name:	Chuangwei pcb depaneling machine
Certification:	CE
Model Number:	CWVC-3 pcb depaneling machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	plywooden case
Delivery Time:	within three days after receive the payment
Supply Ability:	80 sets per month

Contact Now

Detailed Product Description

Cutting Length:	Unlimited	Packaging Detail:	Plywooden Case
Delivery Detail:	Within 3 Days	Warranty:	Free For 1 Year
Supply Ability:	80 Sets/month	Material For The Blade:	High Speed Steel
Name:	PCB Separation Machine
High Light:	pcb assembly machine , metal cutter machine

PCB Separation Machine with 2 Linear Blades High Speed Steel-PCB Depaneling Features:

1. Max. PCB separating length is unlimted
2. Separate PCB without bending and tension stress
3. Safety use, easy operation
4. Separating process without vibrations

PCB Separation Machine with 2 Linear Blades High Speed Steel-PCB Depaneling Specification

Model	CWVC-3
Max. PCB separating length	unlimited
PCB separating thickness	0.3-3.5mm
PCB separating speed	by operator skilled level
Voltage	110/220V
PCB separator machine size	780x500x620mm
PCB separator machine weight	185Kg

Ditailed Product Discribe

1. The machine was designed to separate pre-scored PCB carefully, without bending and tension stress.
2. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the separating process, or thin board even to 0.3mm can be worked safely.
3. Separating process without vibrations
4. PCB separating control method is by pneumatic-driven and electromagnetic valve
5. PCB separating operation is that operator stamps the foot pedal to separate PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust

Please kindly find the video by following link

http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )

Company information

From 2004 we started to development,manufacture,sale,service for PCB separator machine, until now,we have produced different kind PCB separator machine type for manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB separator machine base your actual requires. (any shape,length,thickness of PCB,aluminium PCB,LED strip,solar energy PCB,FR4 and soft material FPC etc.)

Any interest please contact us freely.
