Dongguan Chuangwei Electronic Equipment Manufactory
Home ProductsPCB Depanelizer

pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic

China Dongguan Chuangwei Electronic Equipment Manufactory certification
China Dongguan Chuangwei Electronic Equipment Manufactory certification
The router works fine. I would like to special thanks to you one more time for your support!

—— Ahmet

I was set up your machine one week ago. İt’s good working. Thank you for all.

—— Erdem

The machine operates well, we will purchase it again

—— Jon

The machine works very well, now we train all workers.

—— Michal

I'm Online Chat Now

pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic

pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic
pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic

Large Image :  pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWVC-2L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 800 sets/year
Detailed Product Description
Warranty: One Year Balde Material: High Speed Steel
Blade Life: 7-8 Months Cutting Thickness: 0.3-3.5mm
Cutting Speed: Operator Skill Level Certification: CE ISO
High Light:

PCB depanelization machine

,

PCB Cutting Machine

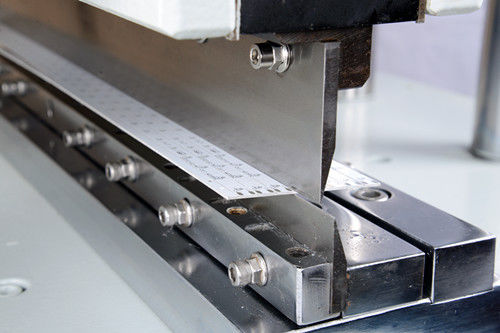

Guillotine Type Pneumatic PCB Cutting Machine With Two Sharp Linear Blades CWVC-2L



***V CUT PCB shearing machine***

1.Easy maintenance and operation
2.Thin PCB even to 0.3mm can be sheared safely
3.Shearing process without vibrations due to pneumatic drive unit


***V CUT PCB depaneling machine specifications***

Model CWVC-2L
Max. PCB shearing length      330mm(Can custom made)
PCB  shearing thickness 0.3-3.5mm
Voltage and Power 110V/220V       10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB shearing machine size    620*230*400mm
PCB shearing machine weight 165kg




***V CUT PCB shearing machine features***
1.Pneumatically driven and electromagnetic valve control.
2.Shearing process without vibrations due to pneumatic drive unit .
3.Shearing PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be sheared safely.
4.Shearing operation is that operator stamps the foot pedal to shear PCB.
5.Highest components near the v groove of PCB can be up to 70mm.
6.The minimum distance is allowed to be 0.5mm between  V groove and the electronic components.
7.Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.



Your best choice



  1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support



  1. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router

Our R&D team continuously upgrade the existing machines to meet the market development trend.



  1. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge



  1.  Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers



Our mission

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success



Our Vision:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success





Cooperative clients



pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic 0





CE approval



pcb separator PCB Cutting Machine With Two Sharp Linear Blades Guillotine Type Pneumatic 1
