Product Details:
Payment & Shipping Terms:
|
| Material For The Blades: | High Speed Steel | Cutting Length: | 460 Mm |
|---|---|---|---|
| Certificate: | CE Certificate And GMC | Shipping Way: | Optional |
| Warranty: | Free For One Year | Quality: | High Rank |
| Application: | SMT PCB Assembly Production Line | Type: | Automatic |
| High Light: | 300/S pcb depanelizer,pcb depaneling equipment |
||

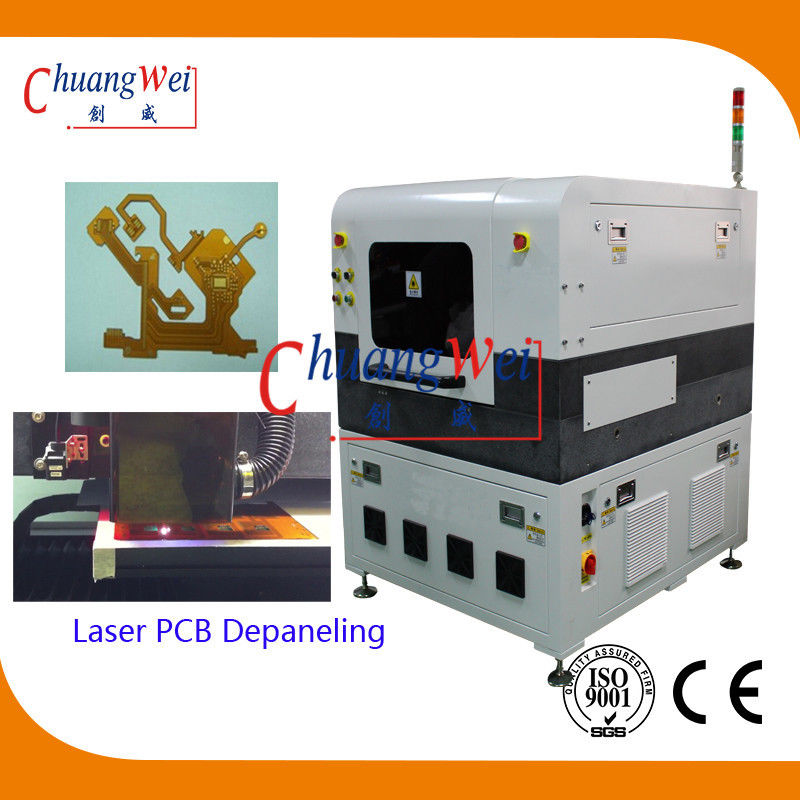

Quality Assurance PCB Depaneling Machine with LCD Display Exported Vietnam Fast Delivery
| Max. working area (X*Y*Z) |
300*300*11mm |
| Max. Material size (X*Y) | 300*300mm |
| cutting speed | 100/200/300/500mm/s |
| cutting thickness | 0.6-3.5mm |
| Pcb Separation Machine weight | 90 kg |
| Date Input Formats | Gerber, X-Gerber, DXF, HPGL |
| Positioning Accuracy | ±25 μm (1 Mil) |
| Diameter of focused laser beam | 20 μm (0.8 Mil) |
| Laser Wavelength | 355mm |
| Cooling | Air-cooled(internal water-air cooling) |
| Humidity | <60% (non-condensing) |
1. Neat and smooth edge, no burr or overflow;
2. More quick and easy, shorten the delivery time;
3. High quality ,no distortion,surface clean& uniformity;
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed;
5.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries;
6.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
7.Reduce energy consumption, Cost savings.
8.Cost-effective, fast cutting speed, stable performance
A. Pre-consultation:provides professional SMT solution for the full line.
B. Factory Warranty:One-year warranty factory service.
C. Installation:On-site installation and commissioning,to ensure smooth production.
D. Technical Training:provides professional training from level 1 to level 3.
E. Technical Support:provides 7 days * 24 hours technical support.
F. Software Upgrade:offer lifetime free software upgrades for all products.
Don't hesitate to contact below and let's make it splash together!
