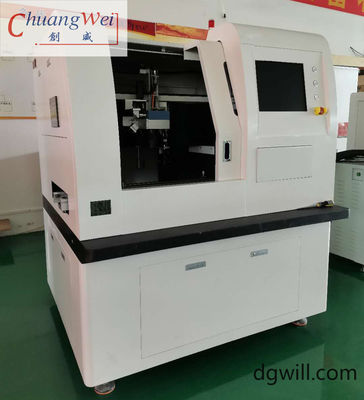

FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line

FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line
FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line

Large Image :  FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line

Product Details:

Place of Origin: China
Brand Name: Chuangwei
Certification: CE / FCC / UL
Model Number: CWVC-5L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard box package for light and small item; Strong wood package for heavy and large equipment;
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 700 sets per year
Detailed Product Description
Max PCB Size: 600*460mm Power Supply: 230 VAC, 50-60 Hz, 3 KVA
Laser Wavelength: 355nm Quality: High Rank
Warranty: Free For 1 Year Package: Wooden Box
Application: SMT PCB Assembly Production Line Type: Automatic
High Light:

FPC Laser Separator

,

48W PCB Laser Separator



High Quality FPC PCB Laser Separator With 48W UV Laser Head for SMT PCB Assembly Production Line



FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 0



PCB Laser Depaneling Machine in SMT Line Feature:
1. Neat and smooth edge, no burr or overflow
2. More quick and easy, shorten the delivery time;
3. High quality ,no distortion,surface clean& uniformity;
4. Gathering the CNC tech,laser tech,software tech…High accuracy,High speed
5.High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.
6.Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;
7.Reduce energy consumption, Cost savings.
8.Cost-effective, fast cutting speed, stable performance





Specification:
Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 400mmX300mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process 40mmх40mm



Laser Singulation:

CWVC-5L Laser Singulation Machine combines innovative technologies to provide the flexibility of a traditional bit router with the speed of a singulation press in one completely stress free, dust-reduced laser depanling solution.

Stress Free Depaneling:

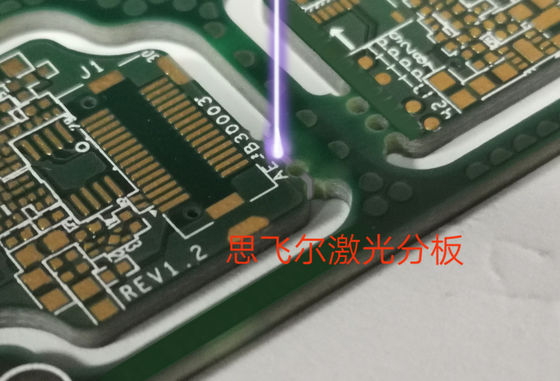

Utilizing a laser for the depaneling process means cutting is achieved with-out making contact with the PCB. Cutting without contact means there is no stress to the PCB or to the decliate components on that PCB.

No stress to the PCB or components ensures there are no failures due to stress cracks resulting in increased quality and performance of end products.



Stationary Laser Assembly:

The stationary laser assembly guarantees a cut that is consistently accurate. The focal point of the beam will not move and the laser accuracy never degrades with machine and motor wear.



Significant Dust Reduction:

Laser routing provides significant dust reduction over traditional cutting with a router bit or a saw.

Significant dust reduction means there is no secondary process step required to remove dust left by the depaneling process.

No dust means no foreign material on the PCB or end product that can cause failures or contamination.



Dual Shuttle In-Feed:

The dual shuttle in-feed provides speed, flexibility and accuracy. It provides the ability to run one PCB very fast or the flexibility to run two different programs simultaneously. The cycle time is less than 2 seconds for the PCB shuttle process. Running two products simultaneously reudces changeover time to zero.



All Axes Utilize High Precision Linear Motors:

Every machine movemnt is extremely fast and accurate due to all axes using high precision linear motor technology.





FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 1FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 2

FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 3FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 4

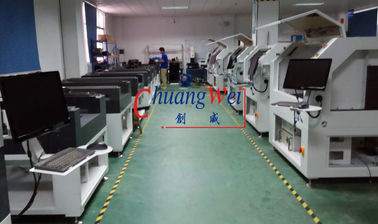

Company Introduction:

FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 5FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 6



ChuangWei Electronic Equipment Manufactory



Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.



Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry.



We're pleased to get your Inquiry and we will come back to as soon as possible.







Application:

FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 7  FPC PCB Laser Separator With UV Laser Head for SMT PCB Assembly Production Line 8
