Product Details:
Payment & Shipping Terms:
|
| Blade: | Two Round Blades | Blade Material: | High Speed Steel |
|---|---|---|---|
| Blade: | Two Circular Blade | Platform: | 500*270mm |
| Thickness: | 1.0-3.5mm | Depaneling Length: | Unlimit |
| Name: | V Groove PCB Separator | ||
| High Light: | pcb cutter,depaneling machine |
||

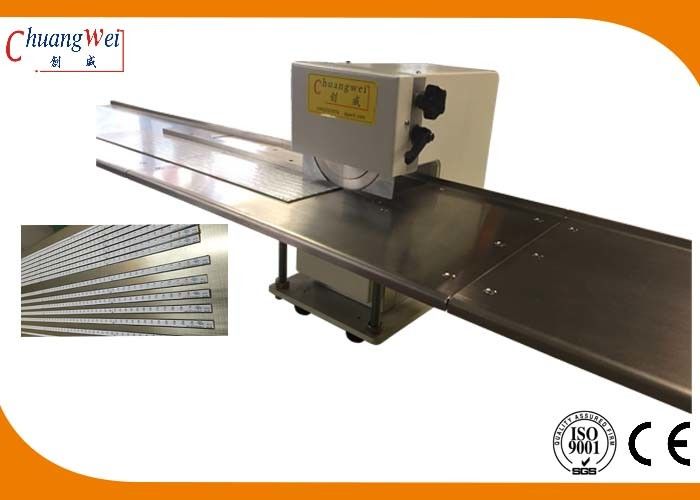

PCB Separation Pre Scrored PCB Depaneling Machine V Groove PCB Separator
Feature:
1. Guide can be adjusted vertically to suit different PCB thickness.
2. Clearance between the circular blades can be precisely adjusted with the knob.
3. Upper and lower circular blades can be re-used after regrinding.
4. Shape and sizes of the circular blades can be made according to customer's specifications.
Chuangwei Machine Diagram:
Sell pcb cutting machine with economical and practical
1.Easy operating modes
2.Easy setting of the PCB edge guides
3.Cutters can be re-grinded
4.Avoid damaging
Specification:
|
Model |
CWVC-1SJ |
|
PCB Cutting Length (mm) |
No limit |
|
Cutting Speed (mm/s) |
0~400 |
|
Cutting Thickness (mm) |
0.6~3.5 |
|
Power Supply (V) |
110/220 |
|
Size (mm) |
420*280*400 |
|
Weight (Kg) |
25 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2.Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated to
high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Our Advantage :
1. CWVC-1 Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
