Dual Table PCB Router Machine with Optional Upper/Lower Vacuum Cleaner

China Dual Table PCB Router Machine with Optional Upper/Lower Vacuum Cleaner supplier
Dual Table PCB Router Machine with Optional Upper/Lower Vacuum Cleaner supplier Dual Table PCB Router Machine with Optional Upper/Lower Vacuum Cleaner supplier Dual Table PCB Router Machine with Optional Upper/Lower Vacuum Cleaner supplier

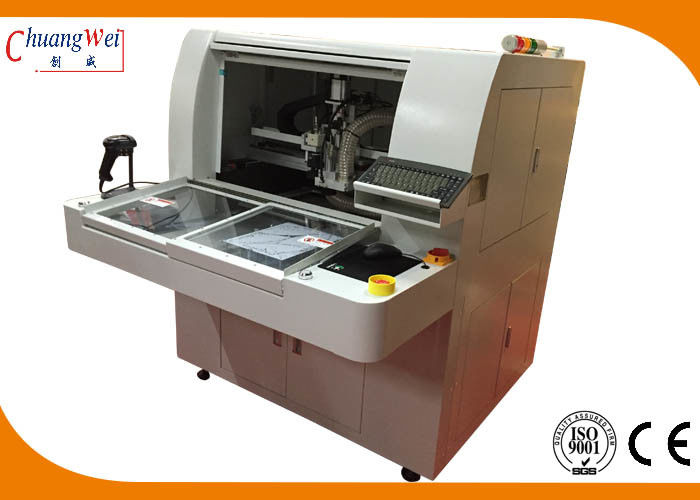

Large Image :  Dual Table PCB Router Machine with Optional Upper/Lower Vacuum Cleaner

Product Details:

Place of Origin: China
Brand Name: ChuangWei
Certification: CE
Model Number: CW-F02

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-14 working days
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Color: White Spindle: KAVO
Spindle Speed: 60000RPM PCB Material: FR4, CEM, MCPCB
PCB Thickness: 3.0mm Name: PCB Router Equipment

Dual Table PCB Router Equipment with Optional Upper/Lower Vacuum Cleaner​







Specification:

Dimensions(W*D*H): 1220mm*1450mm*1420mm
Weight: 550KG
Height offset: 60~110mm
Motor type: JiaBao series
Positioning repeatability: 0.001mm
Axis working area(max): 680mm*360mm*50mm
PCB fixation: standard,specialization
PCB loading/unloading: manual
PCB size (max): 322mm*322mm
PCB thick (max): 5mm
Rigidity fixturing: standard
Fixturing fixation: machinery
Power: 400W
Spindle: 50000rpm/min
Protect: self/wind cooling
Change cutter: Specialization




Features:

CW-F02 is a machine cutting multi-panel PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT or Push cut, it improves product quality and reduces scrap rates.
The machine adopts human-machine interface vie Windows XP, which is simple and convenient, able to achieve automatic cutting path correction, edit and modification of high-pixel CCD program, block program and single-step program.
The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.
Due to the automatic position correction function, PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically, therefore lowers the standard for operators to place the plate, in this way to improve work efficiency immensely.
The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.



Vacuum Cleaner:

Specification:

Model CW-F01-SV
Dimension 650*400*1300mm
Material S/S 41 carbon steel
Control way Built-in
Filter 100% Polyester needle non - woven bag
Falling mode Manual joystick + Dust center of gravity falling automatically
Motor 2HP, 1.5KW, 380V
Static pressure 2000mmAQ
Vacuum suction diameter 50mm
Filter bag arrangement 8 PCS, 120(D)mm*500(L)mm
Surface treatment Single-sided calendering
Cleaning way Drawer type dust box
Positioning wheel 4 pcs, ¢65*¢12mm
Handwheel 2 pcs
Weight 150kgs
Remark Sealed soft rubber access door and clear door



Dual Table PCB Router Machine with Optional Upper/Lower Vacuum Cleaner





Contact Details
Dongguan Chuangwei Electronic Equipment Manufactory

Contact Person: Alan Cao

Tel: +8613922521978

Send your inquiry directly to us (0 / 3000)
